CURVED 21.5 INCH ST2K SUPER DRIVE 8 LED LIGHT BAR

$9,249.99 inc GST

542M METERS 1 LUX BEAM THROW

The STEDI ST2K Series 21.5 Inch 8 LED Curved Light Bar has been built for a different purpose. The reflector style is the first of it’s kind in Australia and is designed to carry out the flood beam from existing combo beam lights and penetrate further down the road which is highly useful in any highway driving where visibility on the shoulders of the road are key.

SKU: LEDST2K-21-8L Category: Tags: , ,

Description

ADVANTAGES OF A LATERAL DRIVING BEAM

Excellent well rounded mid to long range illumination
Significantly minimises adverse reflection from road signs
Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
Excellent alternative to HID, without the associated downsides
70m wide beam at around 150m.
KEY FEATURES

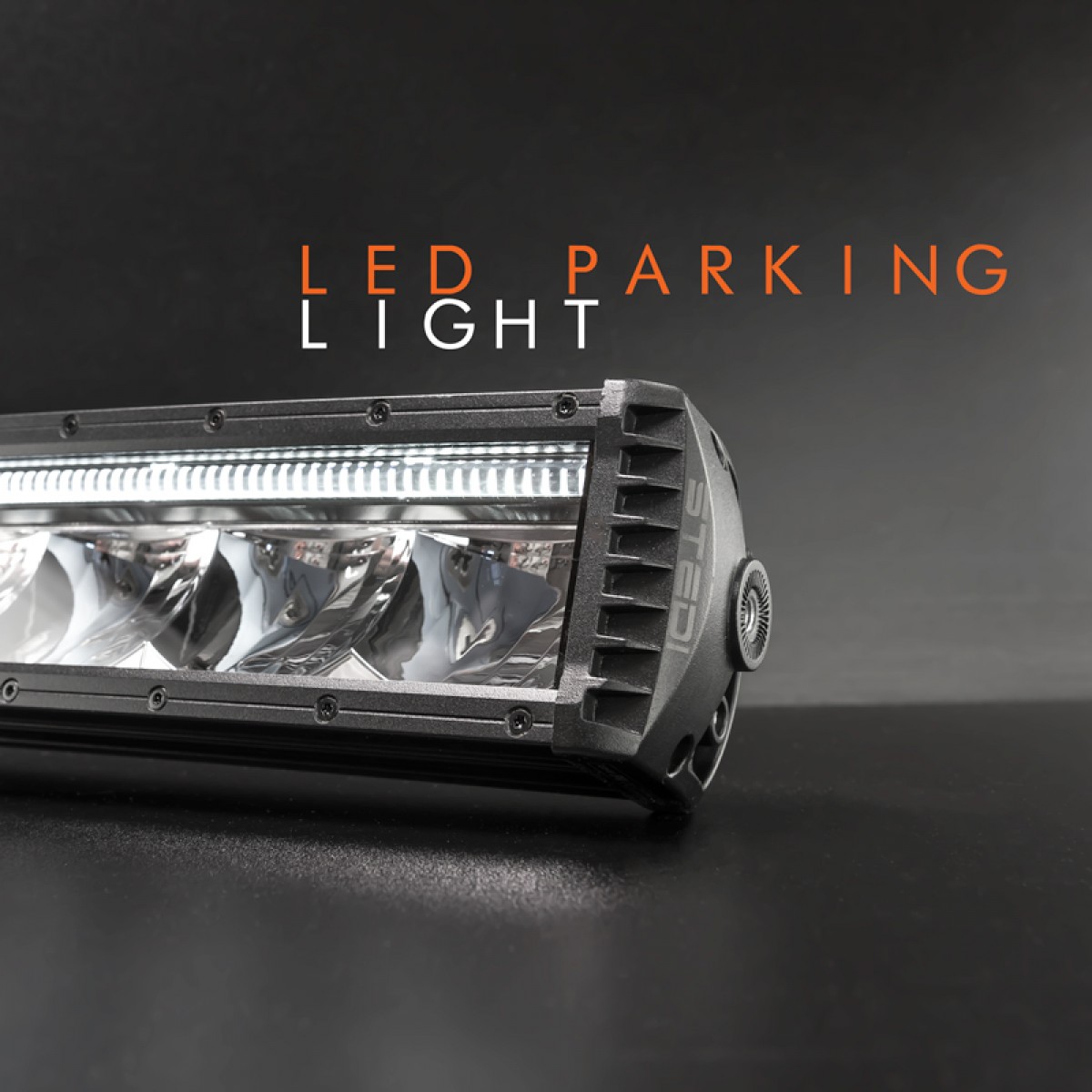

LED Parking / Position Light Function
Breather allows pressure equalization when rapid heat up and cool down cycles occur.
Anodized Polyester Powder Coat
Weatherproof Deutsch® DT2 Connector.

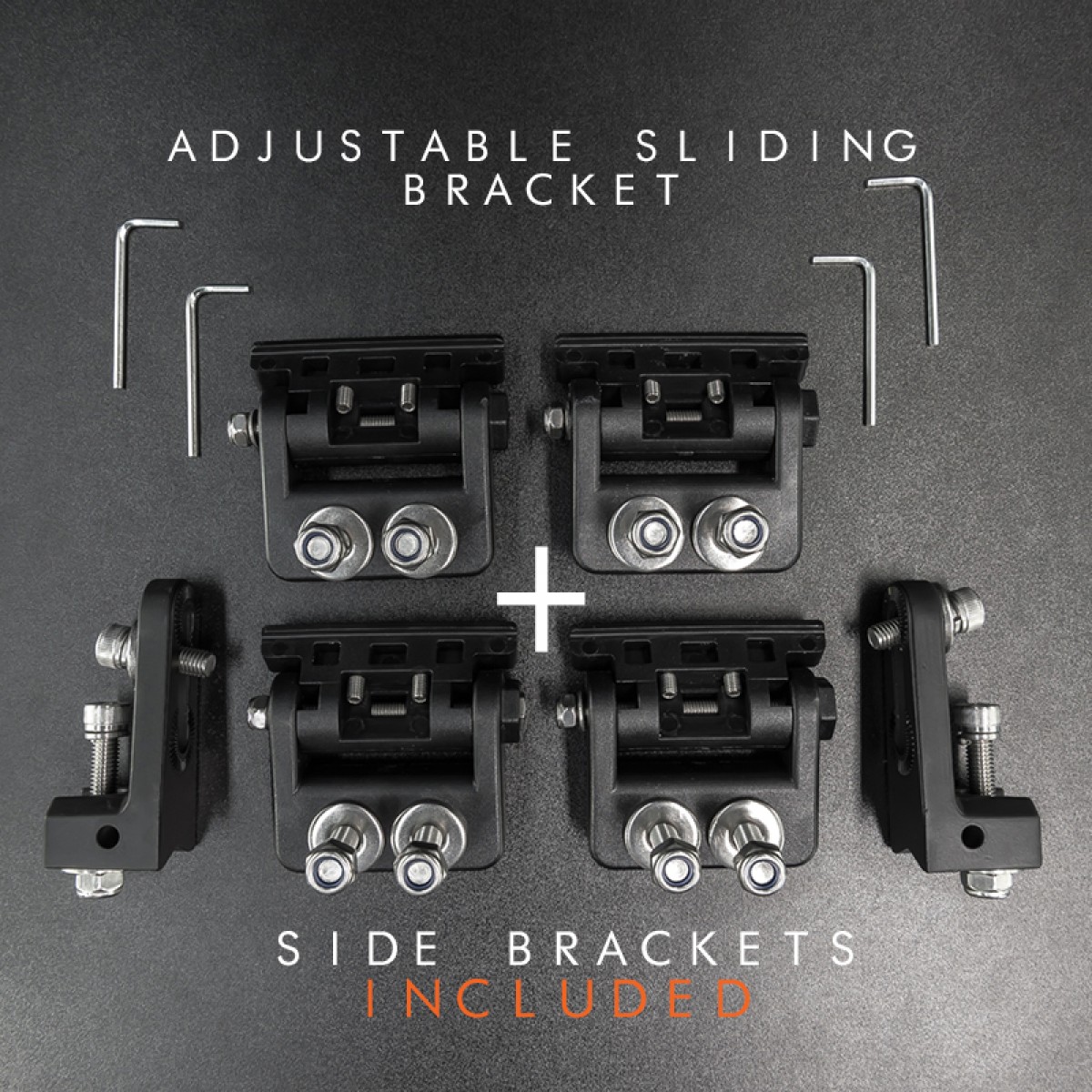

Includes adjustable sliding mounts and side brackets

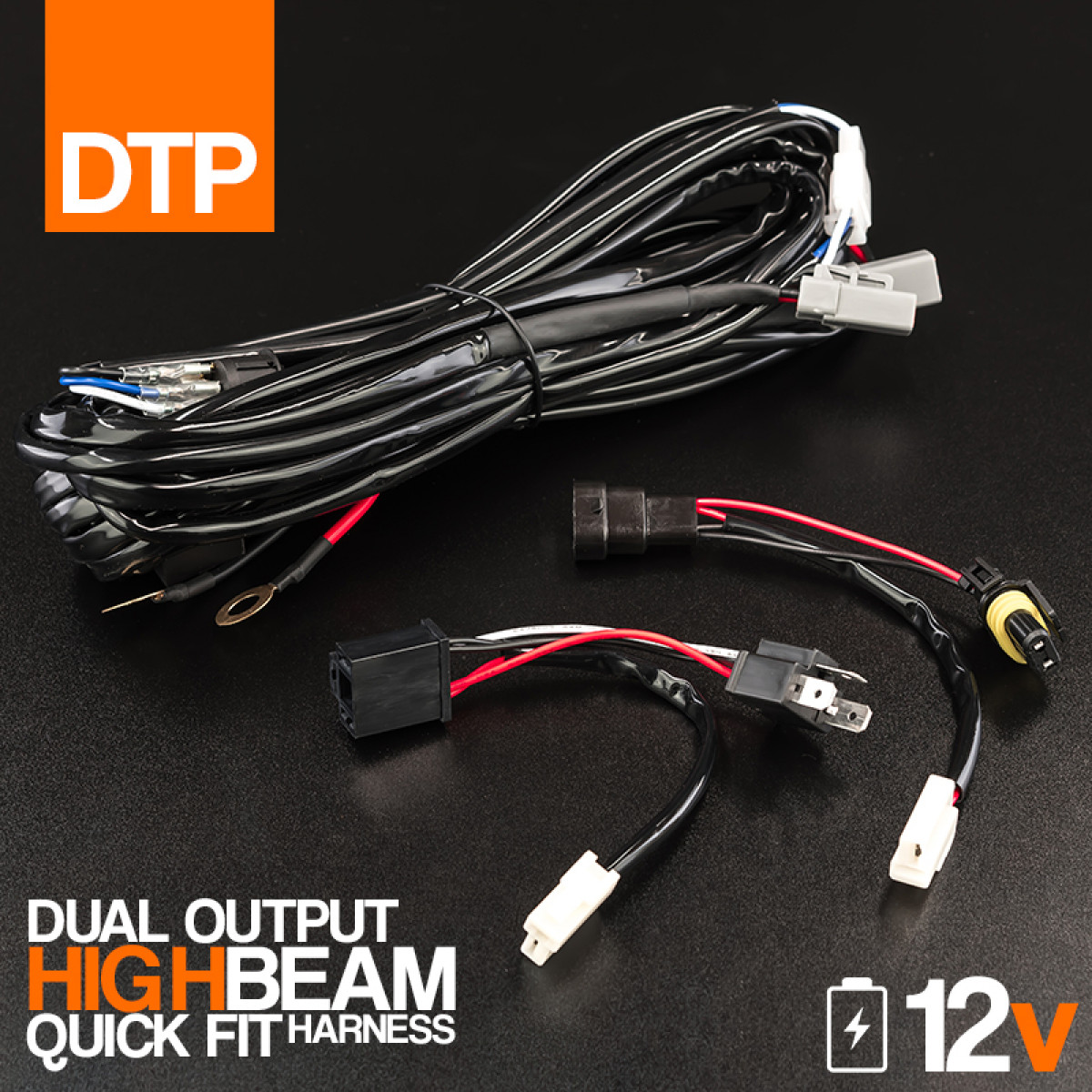

Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles.
Protected against reverse polarity
Shock proof, IP68 waterproof, UV Shielded
Protected against RFI / EMC Interference
Voltage & current surge protection
Pulse Width Modulation Thermal Management
SPECIFICATIONS
MAIN BEAM LED COUNT
8 x 15W
VOLTAGE
12V & 24V
LENS MATERIAL
OPTICAL GRADE, HARD COATED LEXAN
LUMENS
8,000
HOUSING MATERIAL
6063 EXTRUSION
AMPERES
8.1A @ 13.2v
LIFESPAN
50,000
BEAM
DRIVING BEAM
INGRESS PROTECTION
IP68
OPERATING TEMP
-40˚C ~ +150˚C
WEIGHT
2.845kg
CERTIFICATES
E-Mark R10 | CE √
WHAT’S IN THE BOX
1 x 21.5″ ST2K-8L LED Light Bar
2 x Steel Side Brackets
4 x Adjustable Sliding Brackets
Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
Wiring Instructions
Comprehensive 304 Stainless Steel fasteners
